Bromine in PDB 9h6n: Flavin-Dependent Tryptophan 6-Halogenase Thal in Complex with 6-Bromo- L-Tryptophan

Protein crystallography data

The structure of Flavin-Dependent Tryptophan 6-Halogenase Thal in Complex with 6-Bromo- L-Tryptophan, PDB code: 9h6n was solved by S.Bork, H.H.Niemann, with X-Ray Crystallography technique. A brief refinement statistics is given in the table below:

Resolution Low / High (Å) 19.29 / 2.33
Space group P 64
Cell size a, b, c (Å), α, β, γ (°) 136.748, 136.748, 144.358, 90, 90, 120
R / Rfree (%) 15.6 / 19.9

Bromine Binding Sites:

The binding sites of Bromine atom in the Flavin-Dependent Tryptophan 6-Halogenase Thal in Complex with 6-Bromo- L-Tryptophan (pdb code 9h6n). This binding sites where shown within 5.0 Angstroms radius around Bromine atom.
In total 5 binding sites of Bromine where determined in the Flavin-Dependent Tryptophan 6-Halogenase Thal in Complex with 6-Bromo- L-Tryptophan, PDB code: 9h6n:
Jump to Bromine binding site number: 1; 2; 3; 4; 5;

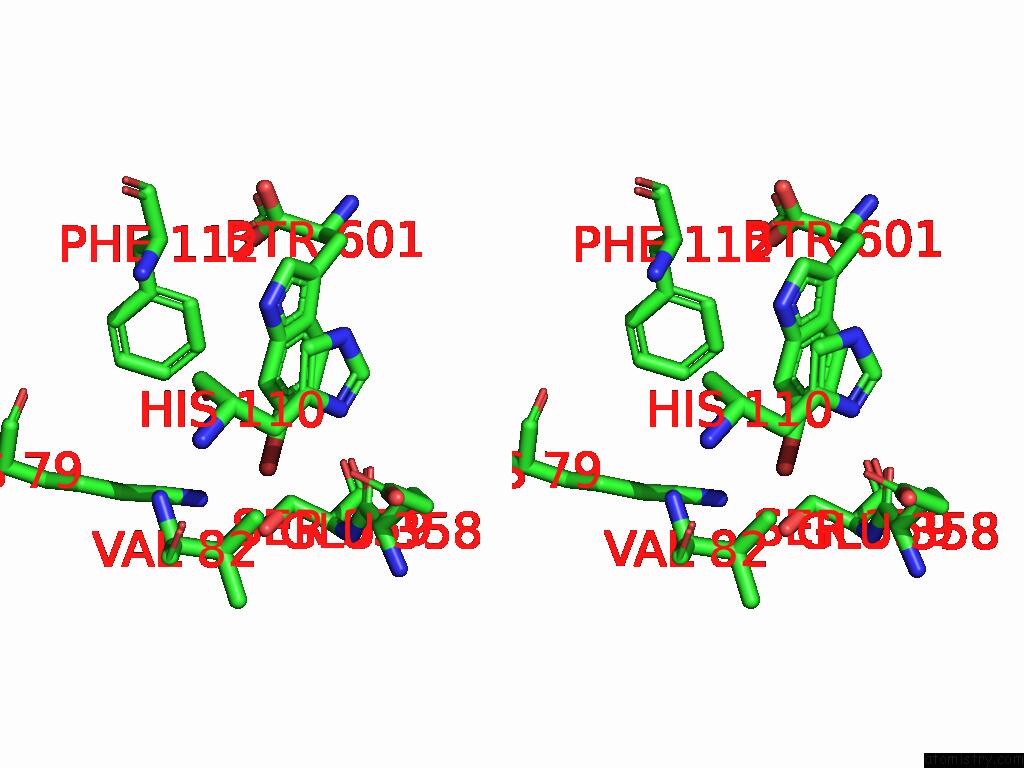

Bromine binding site 1 out of 5 in 9h6n

Go back to Bromine Binding Sites List in 9h6n

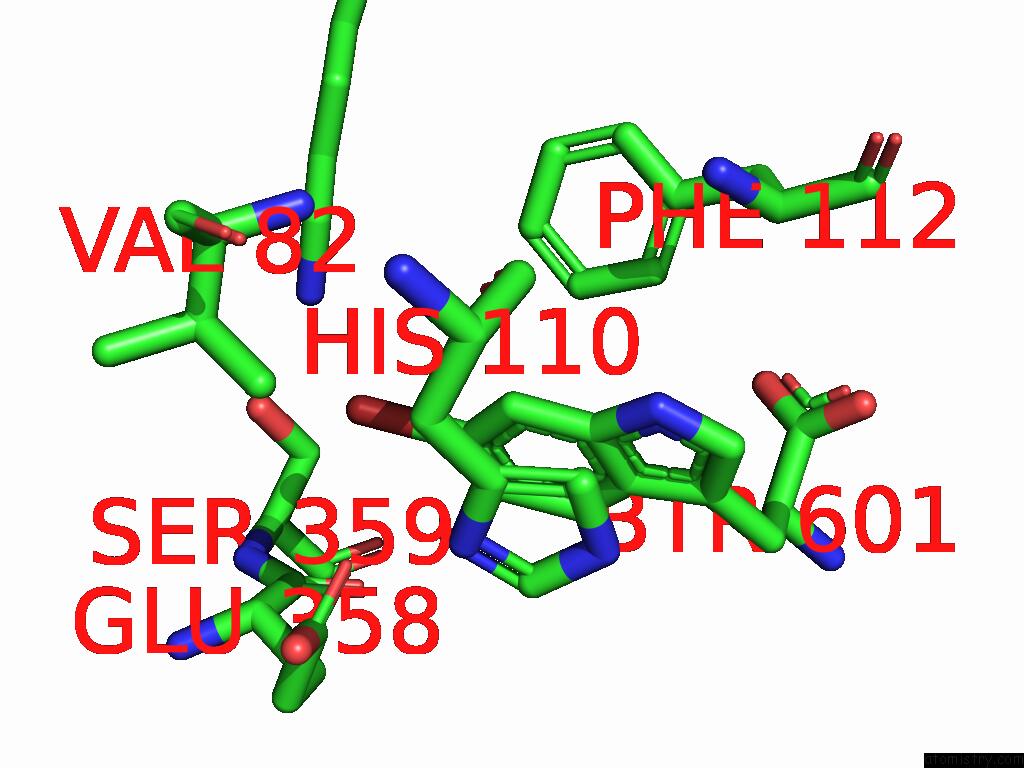

Bromine binding site 1 out of 5 in the Flavin-Dependent Tryptophan 6-Halogenase Thal in Complex with 6-Bromo- L-Tryptophan


Mono view


Stereo pair view

A full contact list of Bromine with other atoms in the Br binding site number 1 of Flavin-Dependent Tryptophan 6-Halogenase Thal in Complex with 6-Bromo- L-Tryptophan within 5.0Å range:
probe atom residue distance (Å) B Occ
A:Br601

b:63.5
occ:0.77
BR2 A:BTR601 0.0 63.5 0.8
CH2 A:BTR601 2.0 51.1 0.8
CZ2 A:BTR601 2.9 30.9 0.8
CZ3 A:BTR601 2.9 31.8 0.8
OE1 A:GLU358 3.2 54.2 1.0
NZ A:LYS79 3.2 59.6 1.0
CG1 A:VAL82 3.5 56.5 1.0
CB A:VAL82 3.8 35.0 1.0
OG A:SER359 3.8 62.5 1.0
CE A:LYS79 3.8 42.8 1.0
C A:GLU358 4.0 47.6 1.0
O A:GLU358 4.0 55.7 1.0
CA A:GLU358 4.1 42.8 1.0
CE2 A:BTR601 4.2 31.3 0.8
CE3 A:BTR601 4.2 37.2 0.8
CB A:SER359 4.3 41.6 1.0
CD A:GLU358 4.4 48.0 1.0
N A:VAL82 4.4 41.2 1.0
CE1 A:PHE112 4.6 45.9 1.0
CB A:GLU358 4.6 40.9 1.0
N A:SER359 4.6 42.7 1.0
CZ A:PHE112 4.6 43.0 1.0
CA A:VAL82 4.8 46.4 1.0
CD2 A:BTR601 4.8 33.7 0.8
ND1 A:HIS110 4.9 43.8 1.0
CG2 A:VAL82 4.9 30.4 1.0
O A:HIS110 5.0 47.1 1.0

Bromine binding site 2 out of 5 in 9h6n

Go back to Bromine Binding Sites List in 9h6n

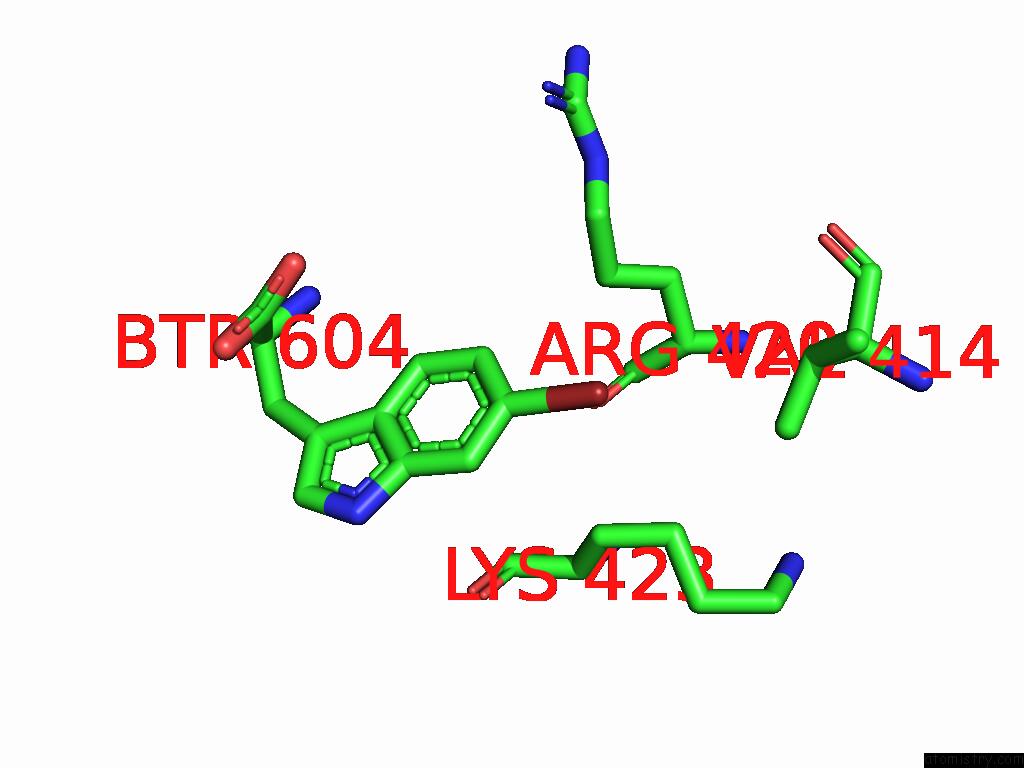

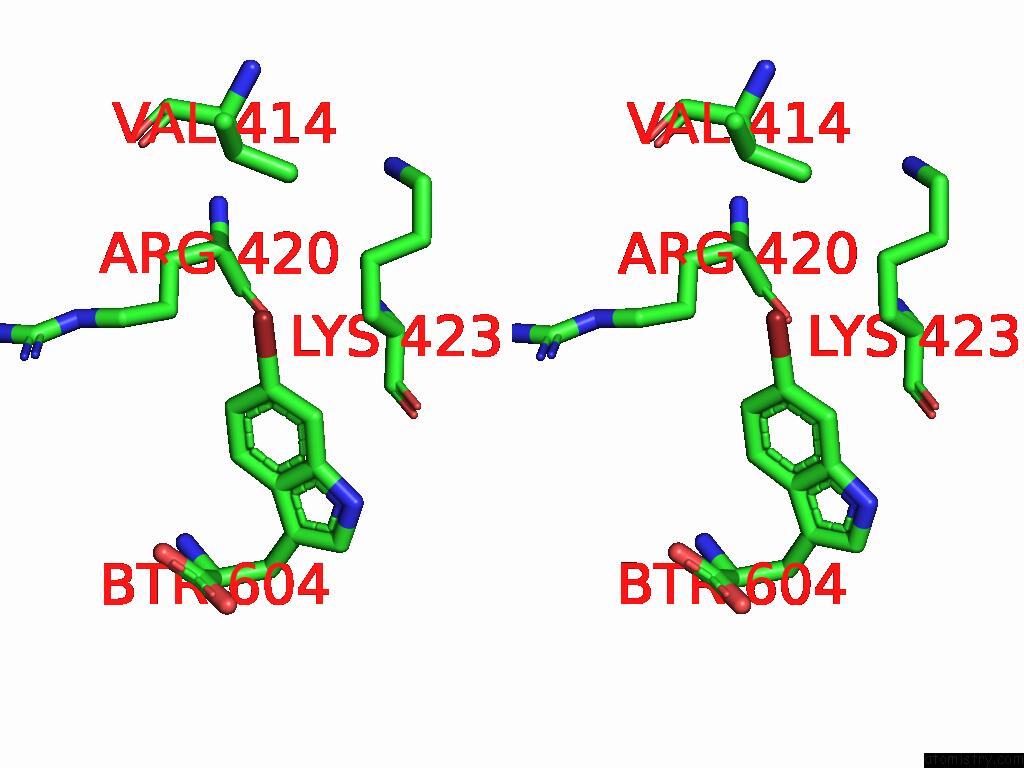

Bromine binding site 2 out of 5 in the Flavin-Dependent Tryptophan 6-Halogenase Thal in Complex with 6-Bromo- L-Tryptophan


Mono view


Stereo pair view

A full contact list of Bromine with other atoms in the Br binding site number 2 of Flavin-Dependent Tryptophan 6-Halogenase Thal in Complex with 6-Bromo- L-Tryptophan within 5.0Å range:
probe atom residue distance (Å) B Occ
A:Br604

b:83.2
occ:0.71
BR2 A:BTR604 0.0 83.2 0.7
CH2 A:BTR604 2.0 75.4 0.7
CZ3 A:BTR604 2.9 82.9 0.7
CZ2 A:BTR604 2.9 67.2 0.7
CB A:LYS423 3.8 60.3 1.0
CG1 A:VAL414 3.9 46.3 1.0
CG A:ARG420 4.0 74.5 1.0
CG A:LYS423 4.0 52.9 1.0
CE3 A:BTR604 4.3 86.7 0.7
CE2 A:BTR604 4.3 71.5 0.7
CD A:ARG420 4.4 76.2 1.0
O A:ARG420 4.4 53.6 1.0
CB A:VAL414 4.5 55.5 1.0
CB A:ARG420 4.8 50.6 1.0
CA A:ARG420 4.8 51.1 1.0
CD2 A:BTR604 4.8 86.9 0.7

Bromine binding site 3 out of 5 in 9h6n

Go back to Bromine Binding Sites List in 9h6n

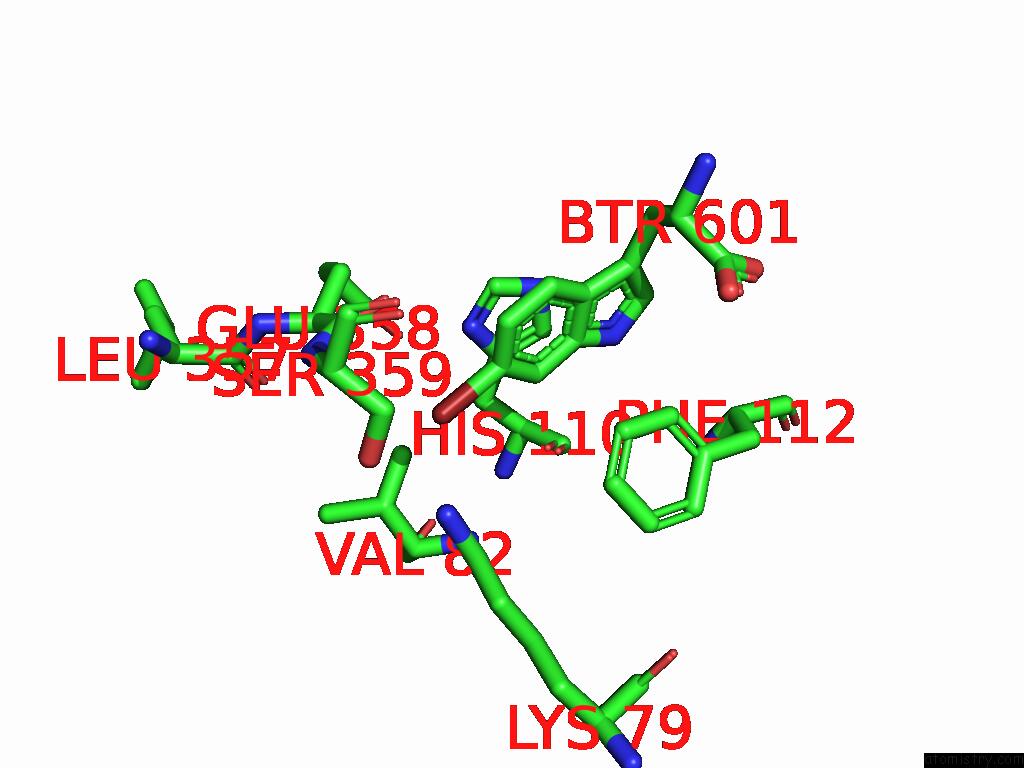

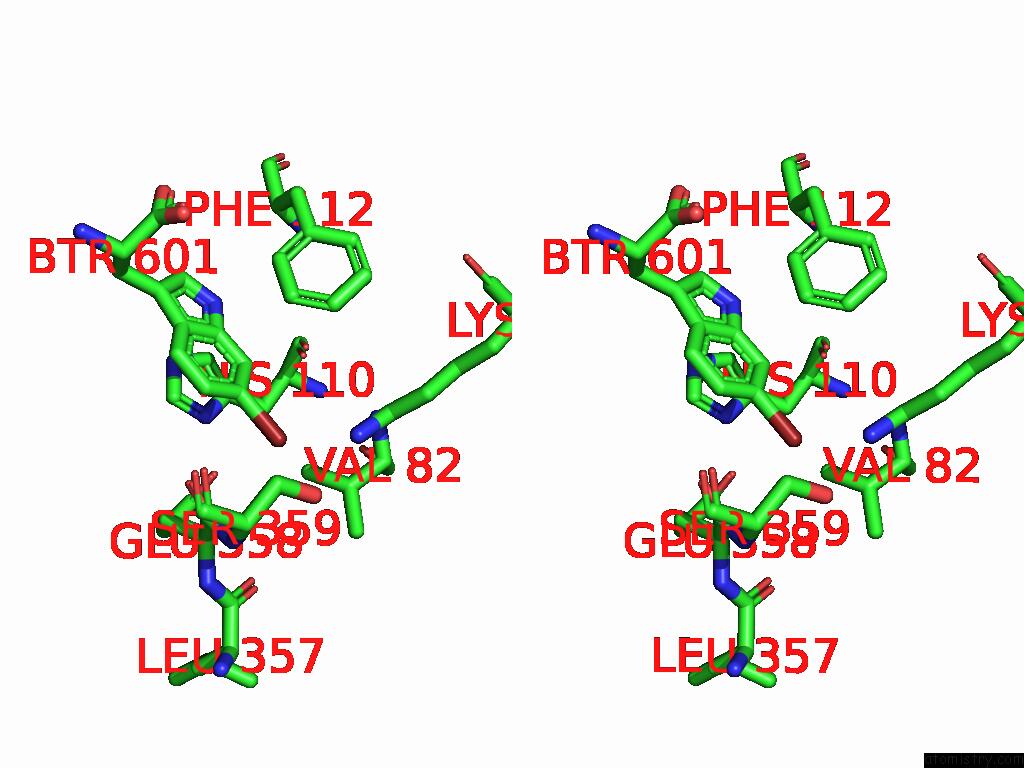

Bromine binding site 3 out of 5 in the Flavin-Dependent Tryptophan 6-Halogenase Thal in Complex with 6-Bromo- L-Tryptophan


Mono view


Stereo pair view

A full contact list of Bromine with other atoms in the Br binding site number 3 of Flavin-Dependent Tryptophan 6-Halogenase Thal in Complex with 6-Bromo- L-Tryptophan within 5.0Å range:
probe atom residue distance (Å) B Occ
B:Br601

b:92.0
occ:0.76
BR2 B:BTR601 0.0 92.0 0.8
CH2 B:BTR601 2.0 59.8 0.8
CZ3 B:BTR601 2.9 61.6 0.8
CZ2 B:BTR601 2.9 57.6 0.8
OE1 B:GLU358 3.1 78.7 1.0
NZ B:LYS79 3.2 64.7 1.0
CG1 B:VAL82 3.6 74.5 1.0
OG B:SER359 3.8 71.3 1.0
O B:GLU358 3.8 80.5 1.0
C B:GLU358 3.8 63.9 1.0
CE B:LYS79 3.9 60.6 1.0
CA B:GLU358 3.9 62.2 1.0
CB B:VAL82 3.9 54.7 1.0
CE2 B:BTR601 4.2 48.9 0.8
CE3 B:BTR601 4.2 52.6 0.8
CB B:SER359 4.2 68.5 1.0
CD B:GLU358 4.3 67.4 1.0
CB B:GLU358 4.4 59.9 1.0
N B:SER359 4.5 56.9 1.0
N B:VAL82 4.6 66.7 1.0
CE1 B:PHE112 4.6 58.0 1.0
CZ B:PHE112 4.7 53.1 1.0
CD2 B:BTR601 4.8 48.9 0.8
ND1 B:HIS110 4.9 62.5 1.0
CA B:VAL82 4.9 70.4 1.0
O B:LEU357 4.9 68.5 1.0
CG2 B:VAL82 5.0 61.9 1.0
CG B:GLU358 5.0 66.4 1.0

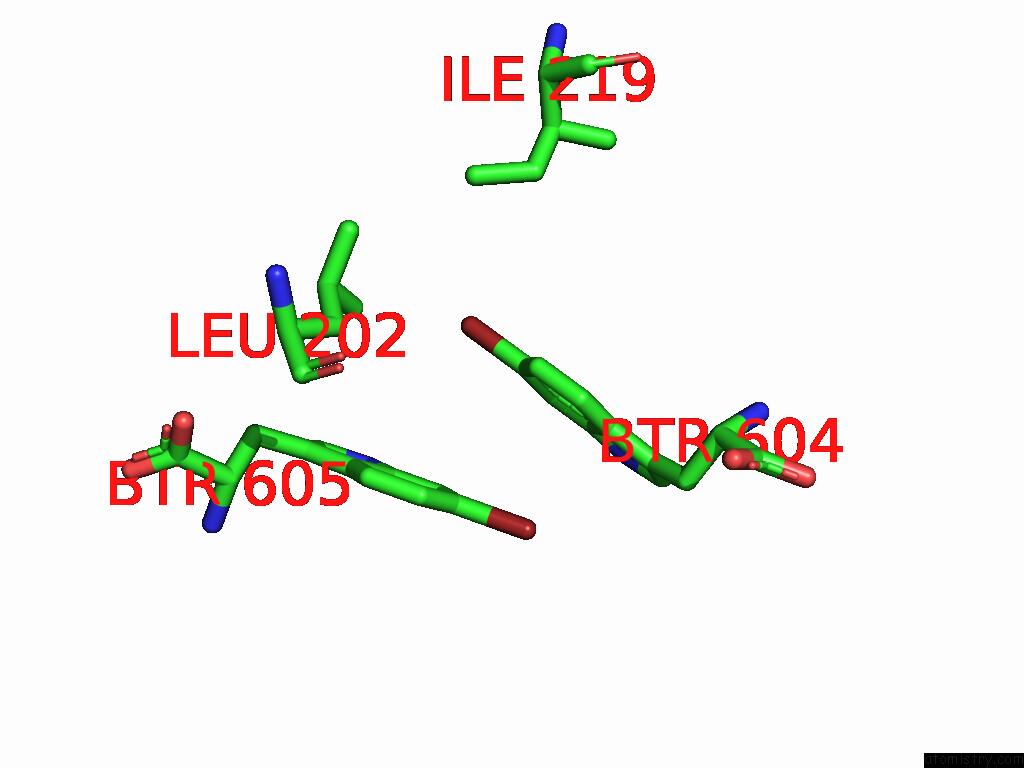

Bromine binding site 4 out of 5 in 9h6n

Go back to Bromine Binding Sites List in 9h6n

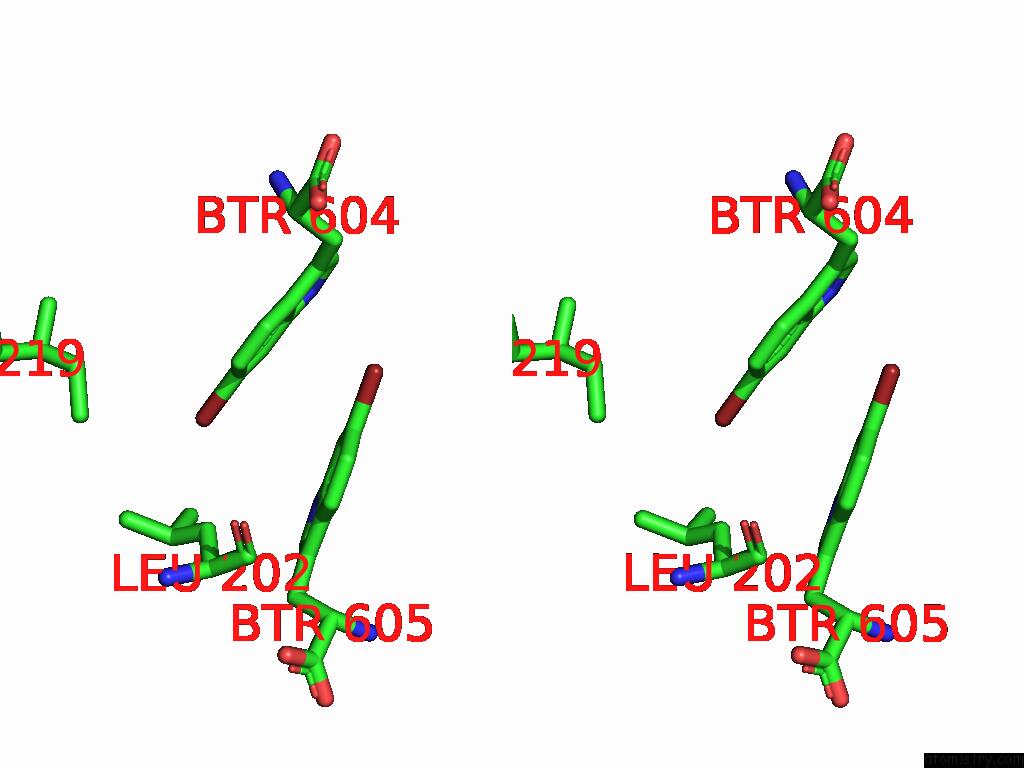

Bromine binding site 4 out of 5 in the Flavin-Dependent Tryptophan 6-Halogenase Thal in Complex with 6-Bromo- L-Tryptophan


Mono view


Stereo pair view

A full contact list of Bromine with other atoms in the Br binding site number 4 of Flavin-Dependent Tryptophan 6-Halogenase Thal in Complex with 6-Bromo- L-Tryptophan within 5.0Å range:
probe atom residue distance (Å) B Occ
B:Br604

b:89.8
occ:0.81
BR2 B:BTR604 0.0 89.8 0.8
CH2 B:BTR604 2.0 59.9 0.8
CZ2 B:BTR604 2.9 44.7 0.8
CZ3 B:BTR604 2.9 44.2 0.8
CD2 B:LEU202 3.5 44.0 1.0
CE2 B:BTR604 4.2 42.1 0.8
CE3 B:BTR604 4.2 47.8 0.8
CD1 B:ILE219 4.4 68.0 1.0
CE2 B:BTR605 4.6 41.0 0.8
CZ2 B:BTR605 4.6 40.6 0.8
CG1 B:ILE219 4.7 61.4 1.0
NE1 B:BTR605 4.7 45.9 0.8
CD2 B:BTR604 4.8 50.5 0.8
CG B:LEU202 4.8 58.0 1.0

Bromine binding site 5 out of 5 in 9h6n

Go back to Bromine Binding Sites List in 9h6n

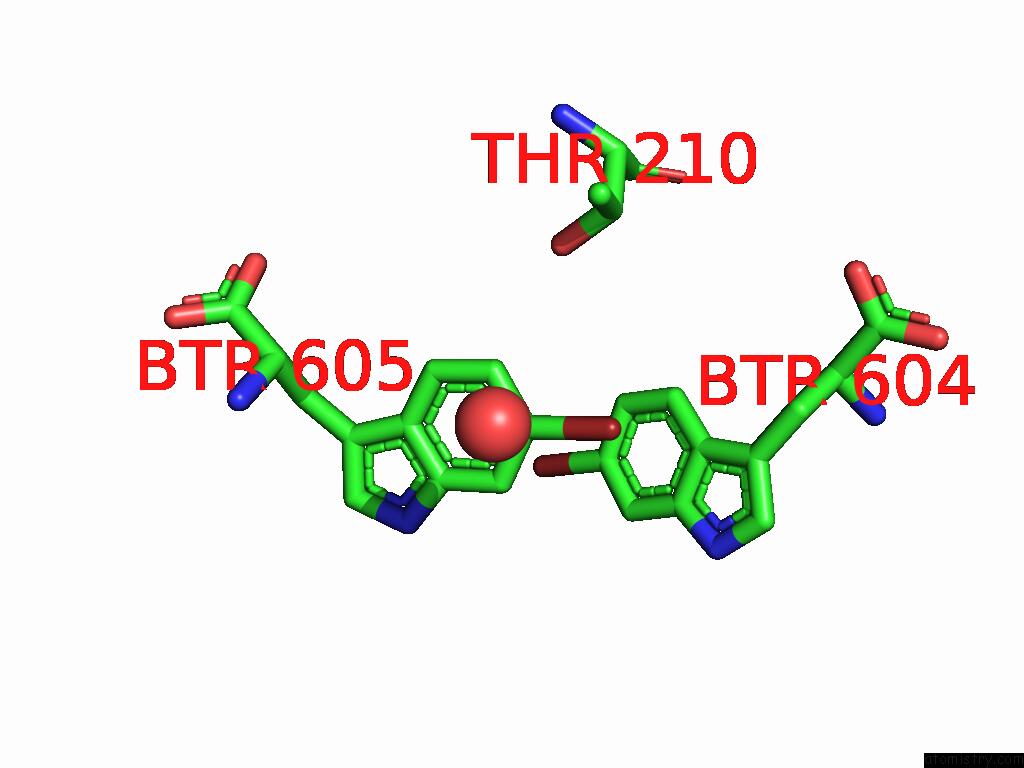

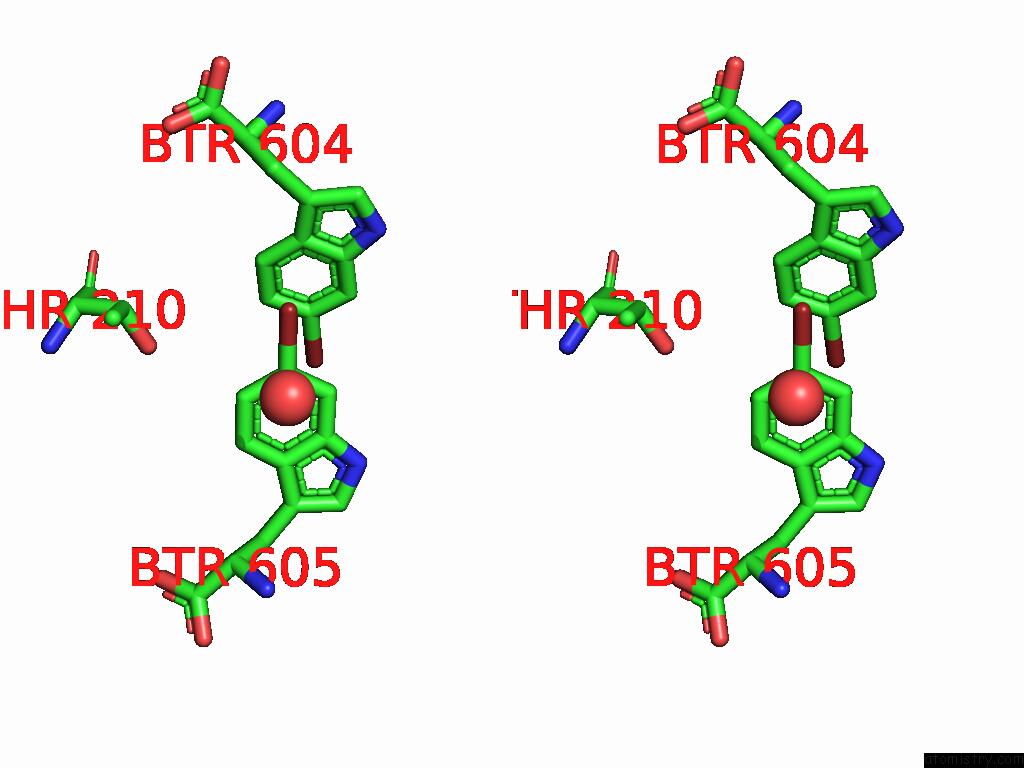

Bromine binding site 5 out of 5 in the Flavin-Dependent Tryptophan 6-Halogenase Thal in Complex with 6-Bromo- L-Tryptophan


Mono view


Stereo pair view

A full contact list of Bromine with other atoms in the Br binding site number 5 of Flavin-Dependent Tryptophan 6-Halogenase Thal in Complex with 6-Bromo- L-Tryptophan within 5.0Å range:
probe atom residue distance (Å) B Occ
B:Br605

b:91.0
occ:0.85
BR2 B:BTR605 0.0 91.0 0.8
CH2 B:BTR605 2.0 54.6 0.8
CZ2 B:BTR605 2.9 40.6 0.8
CZ3 B:BTR605 2.9 39.2 0.8
CD2 B:BTR604 3.5 50.5 0.8
CE3 B:BTR604 3.6 47.8 0.8
CG B:BTR604 3.8 48.1 0.8
CE2 B:BTR604 3.9 42.1 0.8
CZ3 B:BTR604 4.2 44.2 0.8
O B:HOH703 4.2 62.7 1.0
CE2 B:BTR605 4.2 41.0 0.8
CE3 B:BTR605 4.2 43.1 0.8
CD1 B:BTR604 4.3 58.2 0.8
CB B:BTR604 4.3 45.9 0.8
NE1 B:BTR604 4.3 41.7 0.8
CZ2 B:BTR604 4.4 44.7 0.8
CH2 B:BTR604 4.5 59.9 0.8
CD2 B:BTR605 4.8 42.7 0.8
OG1 B:THR210 4.8 59.0 1.0

Reference:

N.Montua, B.Scharkowski, S.Bork, H.H.Niemann, N.Sewald. Iterative Use of Regiocomplementary Flavin-Dependent Halogenases Gives Access to Unique Halogenation Patterns Adv.Synth.Catal. 2025.
ISSN: ESSN 1615-4169
DOI: 10.1002/ADSC.202500503
